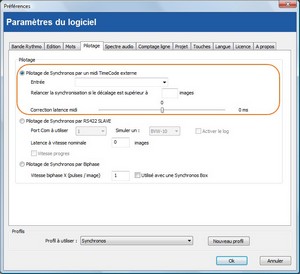

Midi remote

To remote Synchronos by Midi, you must select the Midi input port.

Resync field lets you set the maximum tolerance in images you tolerez to relaunch the synchronization process.

It is also possible to choose more midi latency or less than 1 second. This enables correct delay any accumulated in the midi channel.

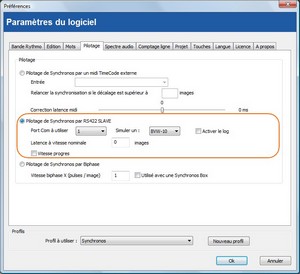

RS 422 Remote

To pilot Synchronos in RS 422, it is necessary to connect a RS 422 port on your computer.

Therefore, you must select that port in Synchronos settings.
Synchronos gives you the possible range of COM 1 COM 10.

Then you can choose the type of device for which Synchronos pretends.
You can choose between the BVW-10, BVW - 5U, DVW-A510 and Synchronos.
Depending on the master device connected, you can simulate different generations of hardware.

"Enable log" records in a file all information received from the master device.
This file can help us solve some problems if you use a master device never tested by our teams

"Latency at nominal speed", lets you set an offset of some images if you experience a delay of Synchronos during synchronization.

Option "Progressive speed" slow changes too brutal speed required by the master device.
This option generates an existing inertia therefore in analog devices.

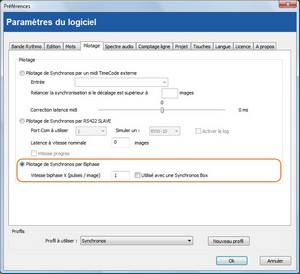

Biphase remote

Synchronos is able to be driven by a Biphase master.

The biphase is an electrical signal representing a clock.

It is therefore necessary to know the scale of this clock.

You must enter the number of clock cycles generated for a video image.
